AccuCut

Free Shipping

19% off

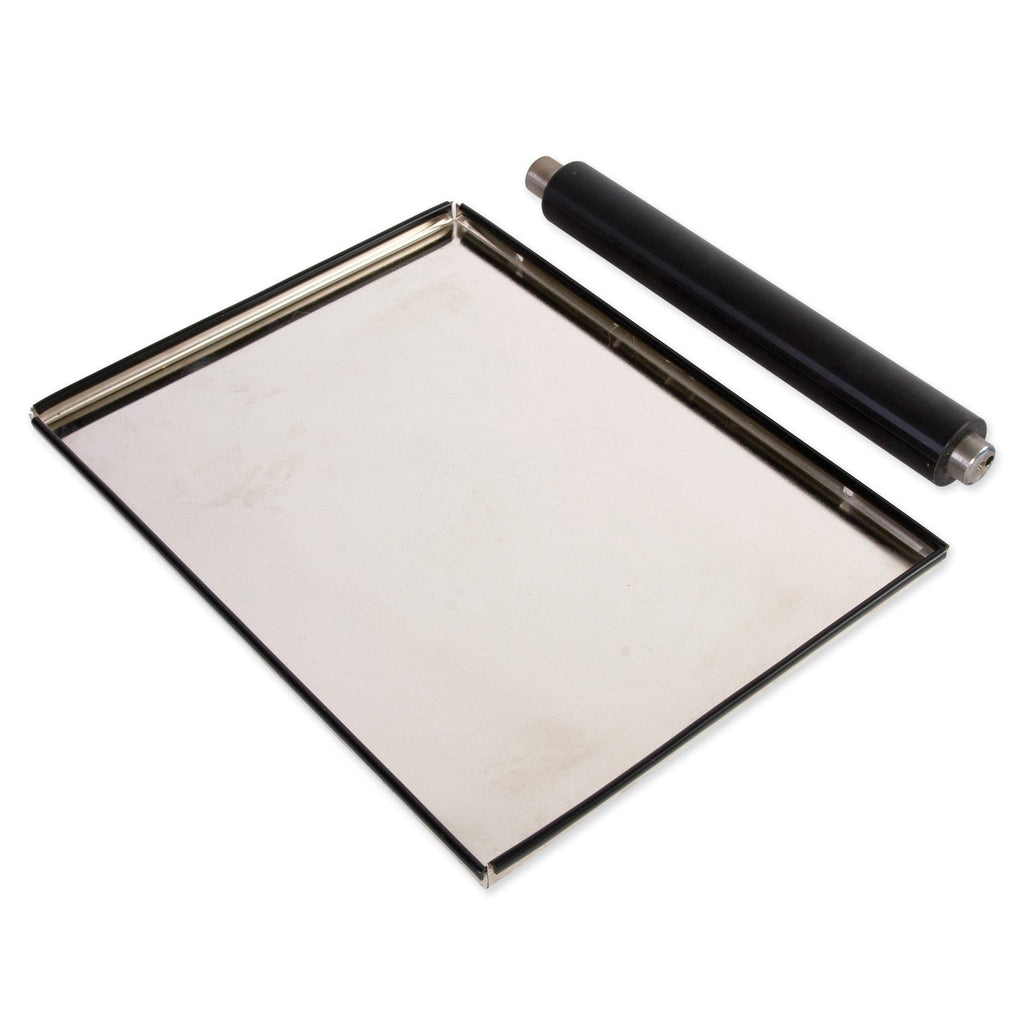

AccuCut MARK 5 Roller/Tray Kit

Name: AccuCut MARK 5 Roller/Tray Kit
Brand: AccuCut
SKU: 08-410000N
Price: 137.99 USD
Availability: BackOrder

(2)

$137.99 $170.00

Backordered This product will ship when stock is available.

Estimated availability: January 11, 2027.

Shipping Cost

Orders of $79 or more ship free. Products marked “Free Shipping” also qualify. Otherwise, shipping is a flat $12.95 per order. We ship within the contiguous United States only.

Delivery Time

Usually ships within 3-5 business days. After your order ships, please allow up to 5 business days for delivery.

Returns

Most items can be returned within 30 days of purchase. To start a return, email [email protected] with your order number. We’ll send you a return authorization number and instructions. See our returns policy for details and exclusions.

Purchase Orders

We accept purchase orders of $100 or more from public schools, government agencies, and other publicly funded organizations. Visit our Purchase Orders page for submission instructions, required information, and our W-9.

Secure Checkout

Your payment information is encrypted during checkout and handled by the payment provider you choose. SupplyMe does not receive or store your full credit card number.

Product Description

The MARK 5 Die-Cutting Machine requires periodic replacement of the roller and die tray. These items last about one year with average use. With heavy use, they may need to be replaced more often. You will know the die tray needs to be replaced when it does not lay flat on a table, if tray center bows in either direction or when you are not able to cut as many layers as expected. You may even hear a "popping" noise when cutting. The roller wears down with use and needs to be replaced when the roller turns white and cutting performance is diminished.

Replacement Instructions

Step 1
Facing the back of the machine, remove the roller safety guard and set aside. The MARK 5 has a steel safety guard.

Step 2
Still facing the back of the machine (the side WITHOUT the handle), remove the two screws then take off and set aside the cover plate. The MARK 5 Machine has easy-to-remove screws that are removable by hand.

Step 3
Pull out the roller and discard it. You will know it’s
time to change the roller when it turns white or gray.

Step 4
Find the end of the roller with the open channel and slide that end into the machine first. Rotate roller until it locks into place and the handle turns with the roller.

Step 5
Replace cover plate, screws and safety guard.

Warning: Safety guard must be in place during operation. Keep hands and fingers clear of roller
or serious bodily injury can occur.

Product Info

Product #	08-410000N
Manufacturer	AccuCut
Compatibility with accucut machines	MARK 5, MARK IV
Dimensions	Uppercase Set is 4"H. Other items are proportional.
Includes	Uppercase Set includes 26 dies + 4 punctuation dies
Material	Steel-Rule Die (.937"): Birch Wood, Steel-Rule Blade and Ejection Foam. Made in the USA.
Product line	MARK 5
Type	Standard
UPC	699195880247
Warranty	Three Years (Limited)
